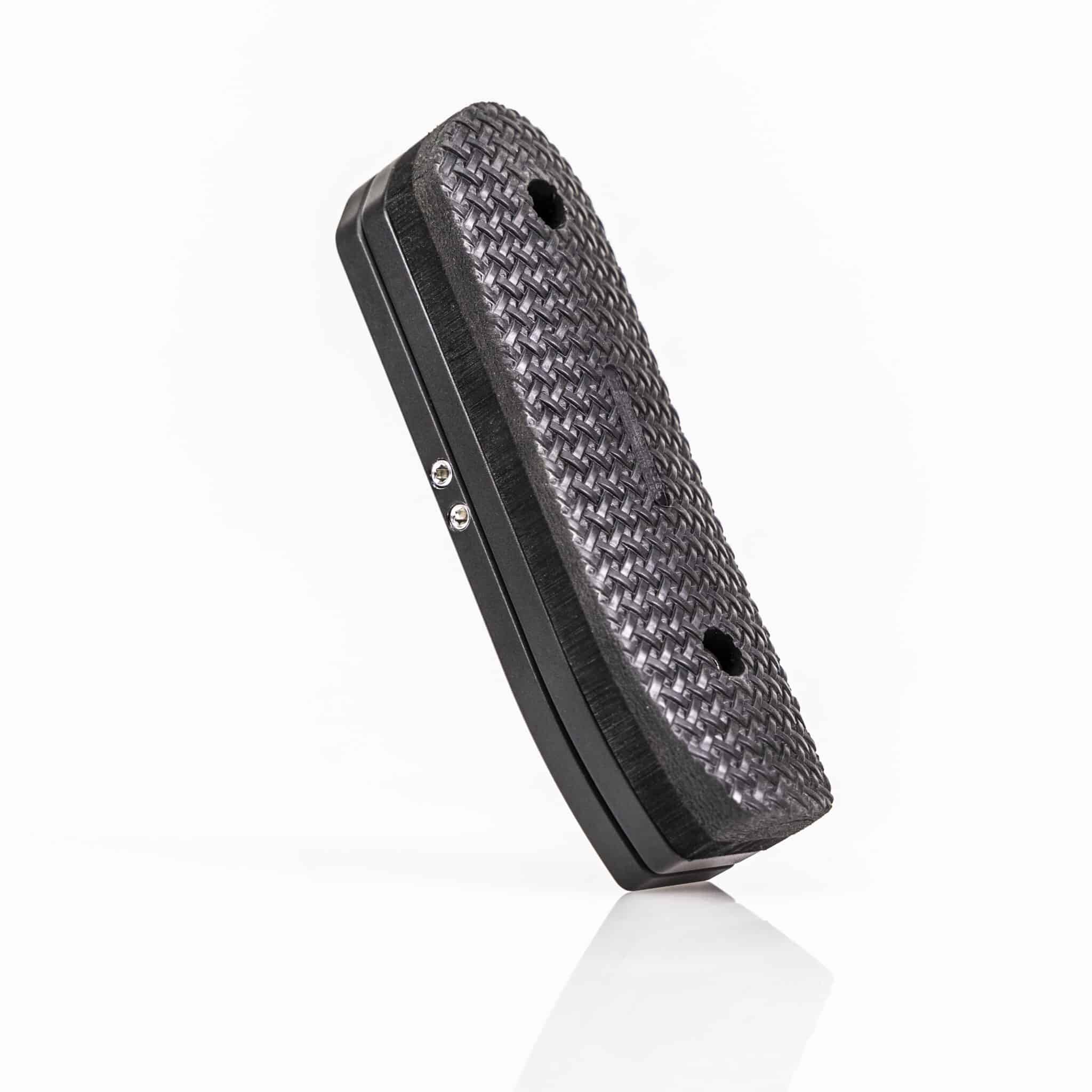

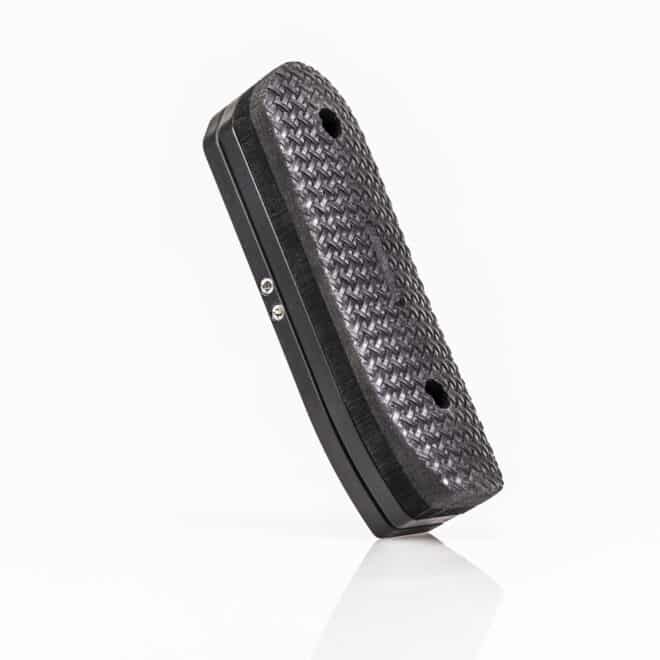

The same Adjustable Recoil Pad (ARP) found on the Samson can be retrofitted to any Genesis, Genesis 2, Exodus, Revelation or Centurion currently in the field! The ARP simply takes the place of one 1/2″ spacer. Due to this the minimum LOP on standard stocks will be 13.5″ LOP with the ARP installed.

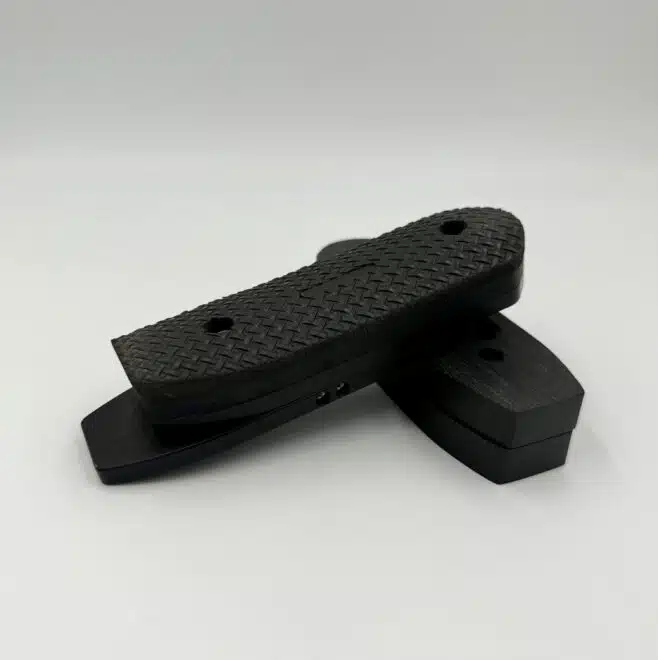

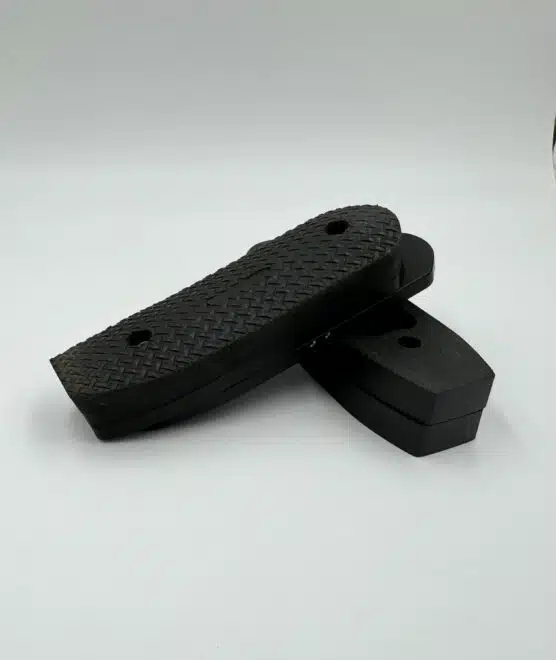

The ARP allows for vertical or angled adjustment of your recoil pad.

Every ARP is sent with a new recoil pad for best fitment and ease of installation.

To install you will need a 3/32 and 7/64 Allen wrench.

• First remove the original recoil pad and spacer from stock with the 7/64 Allen.
• Next use the 3/32 Allen to loosen the small set screws in the side of the ARP.
• Once loosed rotate the recoil pad section at a 45 degree position to locate the holes to affix ARP to stock.
• Use the appropriate length bolt to secure ARP and your desired number spacers.
• Position the ARP in the desired location and tighten the small set screws (no need to gorilla them, they are just little guys!)
• Enjoy the added functionality of the ARP!



Details

Weight	3 lbs
Dimensions	5 × 3 × 3 in
